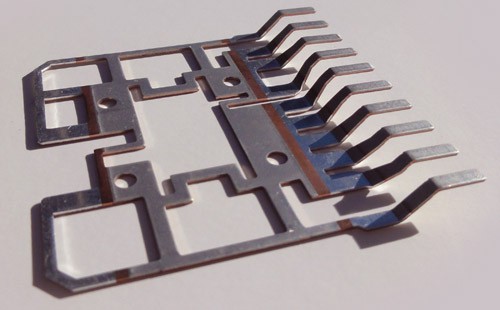

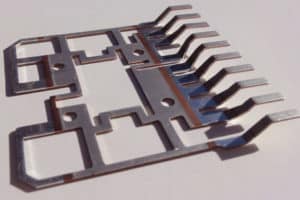

(Click Image to Enlarge)Stamping of Aluminum Inlaid Copper Leadframe for the Automotive Industry

At G&M Manufacturing we specialize in multiple capabilities including stamping and various ancillary processes. In this project a customer in the automotive industry needed a terminal and leadframe array for an automotive hybrid circuit. This circuit required wire bonding to aluminum inlayed surfaces. The primary process was stamping with our 80 ton press. After stamping we utilized our vapor degreaser to clean the C194 Aluminum inlay leadframe. Overall part dimensions were 58 mm x 56 mm x 4 mm with a material thickness of .064 mm. At G&M we stand behind our work, the quality of this part was verified through OGP vision inspection to verify part integrity and the required ±.025 mm tolerances. We manufacture 85,000 parts annually for this customer. This project features our capabilities to manufacture and finish parts utilizing multiple applications and materials. For more information, see the table below or contact us directly.

Request for Quote

Stamping of Aluminum Inlaid Copper Leadframe Project Details

Product Description

Terminal and leadframe array for automotive hybrid circuit requiring wire bonding to aluminum inlayed surfaces.

Capabilities Applied/Processes

Primary

  • Progressive Die Stamping

Secondary:

  • Degreasing
Equipment Used to Manufacture Part

80 ton press, vapor degreaser

Overall Part Dimensions

56mm wide 58mm long 4 mm high

Tightest Tolerances

± 0.025 mm

Material Used

C194 Copper

  • Thickness: 0.0256″ / .64 mm
Material Finish

Selective Aluminum Inlay, Selective Tin Plating

In process testing/inspection performed

OGP Vision System

Industry for Use

Automotive Industry

Volume

85,000 Annually

Delivery Location

Midwest, USA

Standards Met

Customer Specifications, CAD Drawing

Product Name

Leadframe
